single stage High Head coolant pumps (MPS Series)
POWERPOINT is a leading single stage coolant pumps (MPS Series) Supplier, exporter, manufacturer in Kolkata, West Bengal, India.SINGLE STAGE COOLANT PUMP IS ESPECIALLY DESIGNED FOR CNC MACHINING CENTERS,
|
CONSTRUCTION |
OPTIONS |
APPLICATION |
| Body C.I. | Stem Gunmetal | Types of Fluids - Water |
| Stem C.I. | Impeller C.I./Gunmetal/Brass | -Cooling Emulsions |
| Impeller A.L. | Impeller Gunmetal | -Cooling/Cutting Oils |
| Impeller Cover C.I | Shaft S.S. | Kinematical Viscocity : 90mm2 / s |
| shaft EN 8. | Pumping Temperature : 0-50°C |
|
SINGLE STAGE COOLANT PUMPS SPECIAL VERSIONS |
SINGLE STAGE COOLANT PUMPS APPLICATION |
Available
|
All CNC machines lathes and machining centers.Most suited for through tool cooling deep hole drilling etc.Also suitable for industrial washing. |
|

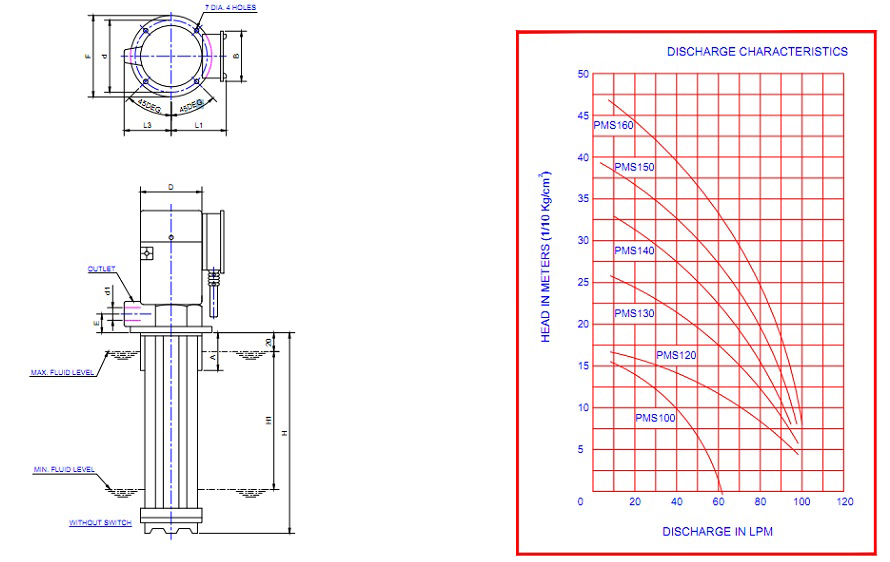

PERFORMANCE CHART OF MPS SERIES |
||||||||||||
|
MODEL |
OUTLET SIZE |
KW/HP |
Head in meters VS LPM |
|||||||||
|
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
||||
|
PMS-100 |
25 mm |
0.37KW /0.5 HP |
55 |
40 |
15 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
PMS-120 |
25 mm |
0.75KW/ 1.0 HP |
95 |
70 |
30 |
0 |
0 |
0 |
0 |
0 |
0 |
|
|
PMS-130 |
25 mm |
1.1 KW/ 1.47 HP |
97 |
85 |
70 |
50 |
15 |
0 |
0 |
0 |
0 |
|
|
PMS-140 |
25 mm |
1.5 KW/ 2.01 HP |
97 |
87 |
80 |
65 |
25 |
10 |
0 |
0 |
0 |
|
|
PMS-150 |
25 mm |
1.7KW/ 2.27 HP |
98 |
90 |
85 |
80 |
65 |
50 |
30 |
0 |
0 |
|
|
PMS-160 |
25 mm |
2.0 KW/ 2.68 HP |
100 |
97 |
95 |
90 |
80 |
70 |
55 |
40 |
10 |
|
FEATURES :-
- Available in very wide range.
- High of design.
- Availability in any type of material like cast iron,SS-316,SS-304,bronze,Alloy – 20 Etc..
- Balanced shaft & rotor with excellent grade stamping and wire so highly efficient motor .
- Totally noiseless operation.
- Available in any length and for any liquid.
- Extruded powder coated motor body (up to 1 HP ) .
- No shaft seal( 100 % Maintenance free ).
- Regenerative type impellers ensure high pressure and discharge
- Large stock, earliest delivery.
WIDE RANGE OF APPLICATION:
| Turning | Grinding | Granite |
| Boring | Filtration | Fountains |
| Drilling | Circulation | Washing |
| Milling | Printing | Heat treatment |
| Cutting | Conveyor | Oil Transfer |
| Sawing | Cooling |
GENERAL :-
These single stage coolant pumps are used on all machine tools performing TURNING, GRINDING, MILLING, DRILLING, CUTTING, SLITTING, And POLISHING Operations. In specific cooling of cutting tools and work piece by discharging Coolant at appropriate pressure and quantily.
SINGLE STAGE COOLANT PUMPS CONSTRUCTION :-
It is in principal a centrifugal pump having shaft built in with electric motor. The impeller is made of a special material of high resistance to abrasion . The large cross sectional area of the passage allow the supply of coolant pump without danger of congestion. The single stage coolant pumps are suitable for coolant having viscosity up to 150 centistokes and temperature up to 100°C.
ELECTRICAL MOTOR:-
It is a totally enclosed squirrel cage induction motor, suitable for 415 v , 50HZ , 3phase A.C. supply (Other voltages/Frequencies on request). The aluminum dia cast rotor along with shaft and impeller is dynamically balanced to achieve silent operation higher output motors are fan cooled. Insulation class ‘B’ protection – IP-44, voltage variation + 10%RPM-2800+3% , Rating (CONTINUOUS)
SINGLE STAGE COOLANT PUMPS EFFICIENCY :-
single stage coolant pumps and electric motor are matched precisely to obtain the LOW POWER CONSUMPTION.
SINGLE STAGE COOLANT PUMP QUALITY CONTROL
Strict quality control system is adhered to achieve concept to “TOTAL CONTROL” Routine test certificate is provided with each single stage coolant pumps and type certificate on request.
GUARANTEED FOR 12 MONTHS FROM DATE OF PURCHASE AS PER OUR STANDARD CLAUSE.
OTHER PRODUCTS :-
BIS MARKED ENERGY EFFICIENT ELECTRIC MOTOR IS:325:1996 * HOLLOW SHAFT ELECTRIC MOTORS
CONTROL TRANSFORMERS * BUILT IN MOTOR LUBRICATING GEAR PUMPS, ROTARY PUMPS & ROTARY GEAR PUMPS.
WE ALSO OFFER IMPORT SUBSTITUTE COOLANT PUMPS.
POWERPOINT is a leading single stage coolant pumps (MPS Series) Supplier, exporter, manufacturer in Kolkata, West Bengal, India.
