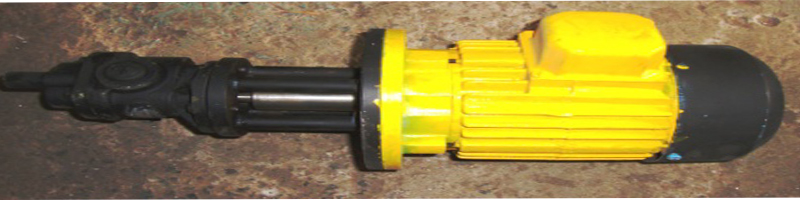

Coolant pumps For Oil (MPS Series)
FEATURES :-
- Available in very wide range.
- High Flexibility of design.
- Availability in any type of material like cast iron,SS-316,SS-304,bronze,Alloy – 20 Etc..
- Balanced shaft & rotor with excellent grade stamping and wire so highly efficient motor .
- Totally noiseless operation.
- Available in any length and for any viscous clear liquid.
- Extruded powder coated motor body (up to 1 HP ) .
- No shaft seal( 100 % Maintenance free ).
- Gears ( helical or bevel ) inside for smooth flow
- Large stock, earliest delivery.
WIDE RANGE OF APPLICATION:-
| Turning | Grinding | Granite |
| Boring | Filtration | Fountains |
| Drilling | Circulation | Washing |
| Milling | Printing | Heat treatment |
| Cutting | Conveyor | Oil Transfer |
| Sawing | Cooling |
|
PERFORMANCE CHART OF MPS SERIES |
|
MODEL |
SUC X DEL MM |
CAPACITY |
Pressure in Kg/cm2 |
||||||||||
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
||||
|
LPM |
M3/HR |
Motor required in HP ( SPPED 1440 RPM ) |
|||||||||||
|
MPS – 10 |
10 X 10 |
10 |
0.6 |
0.25 |
0.25 |
0.25 |
0.25 |
0.50 |
0.50 |
0.50 |
0.50 |
0.75 |
0.75 |
|
MPS – 15 |
15 X 15 |
20 |
1.2 |
0.50 |
0.50 |
0.5 |
0.50 |
0.75 |
0.75 |
0.75 |
0.75 |
1.00 |
1.00 |
|
MPS – 20 |
20 X 20 |
30 |
1.8 |
0.50 |
0.50 |
0.75 |
0.75 |
0.75 |
1.00 |
1.00 |
1.0 |
1.50 |
1.50 |
|
MPS – 25 |
25 X 25 |
50 |
3 |
0.50 |
0.75 |
0.75 |
1.00 |
1.00 |
1.50 |
1.50 |
1.5 |
2.00 |
2.00 |
|
MPS – 40 |
40 X 40 |
110 |
6.6 |
1.50 |
2.00 |
3 |
3.00 |
3.00 |
3.00 |
5.00 |
5.0 |
5.00 |
5.00 |
|
MPS – 50 |
50 X 50 |
225 |
13.5 |
3.00 |
3.00 |
5 |
5.00 |
5.00 |
5.00 |
7.50 |
7.50 |
7.50 |
12.50 |
|
MPS – 65 |
65 X 65 |
350 |
21 |
5.00 |
7.50 |
7.5 |
10.00 |
10.00 |
10.00 |
12.50 |
12.50 |
15.00 |
15.00 |
|
MPS – 80 |
80 X 80 |
500 |
30 |
7.50 |
10.00 |
10 |
12.50 |
12.5 |
15.00 |
15.00 |
17.50 |
20.00 |
20.00 |
